Mechanical Timing Chain Tensioner Arm and Guide Rail Assembly

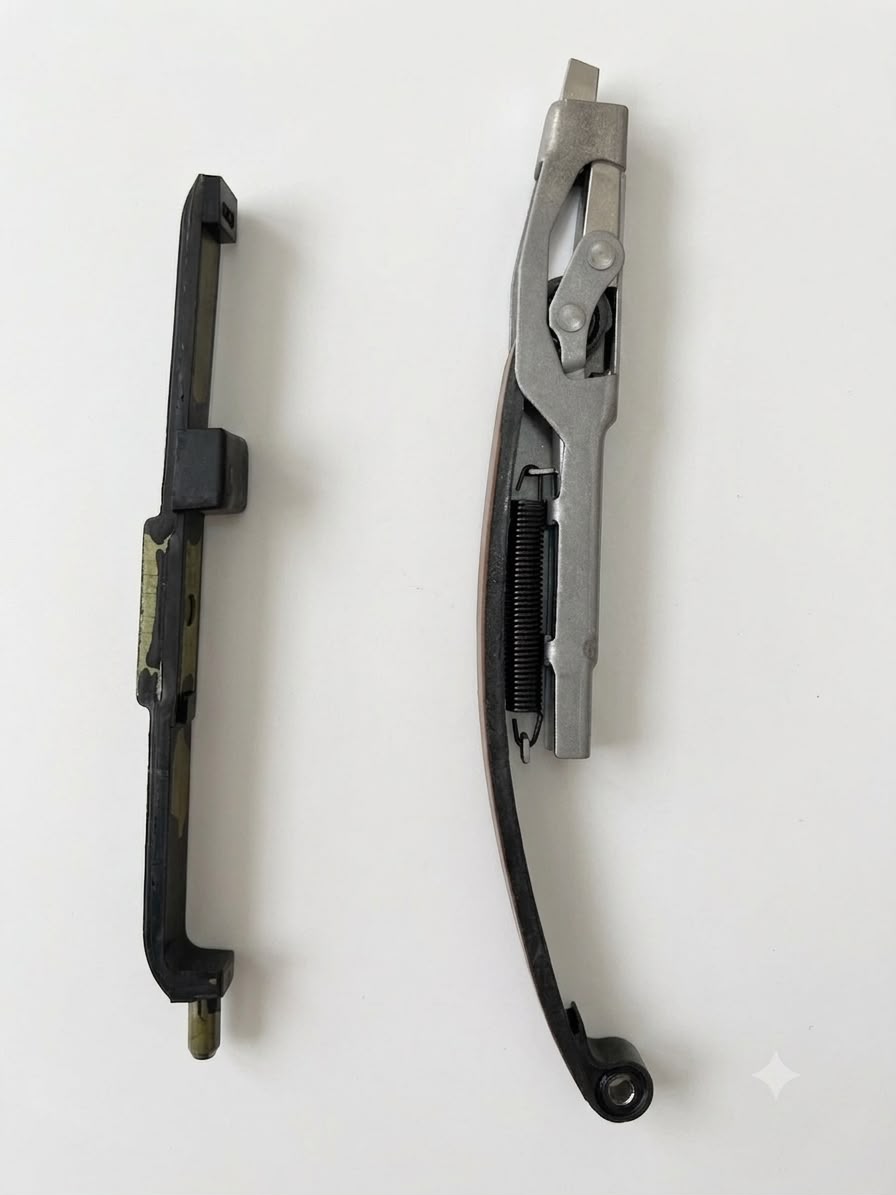

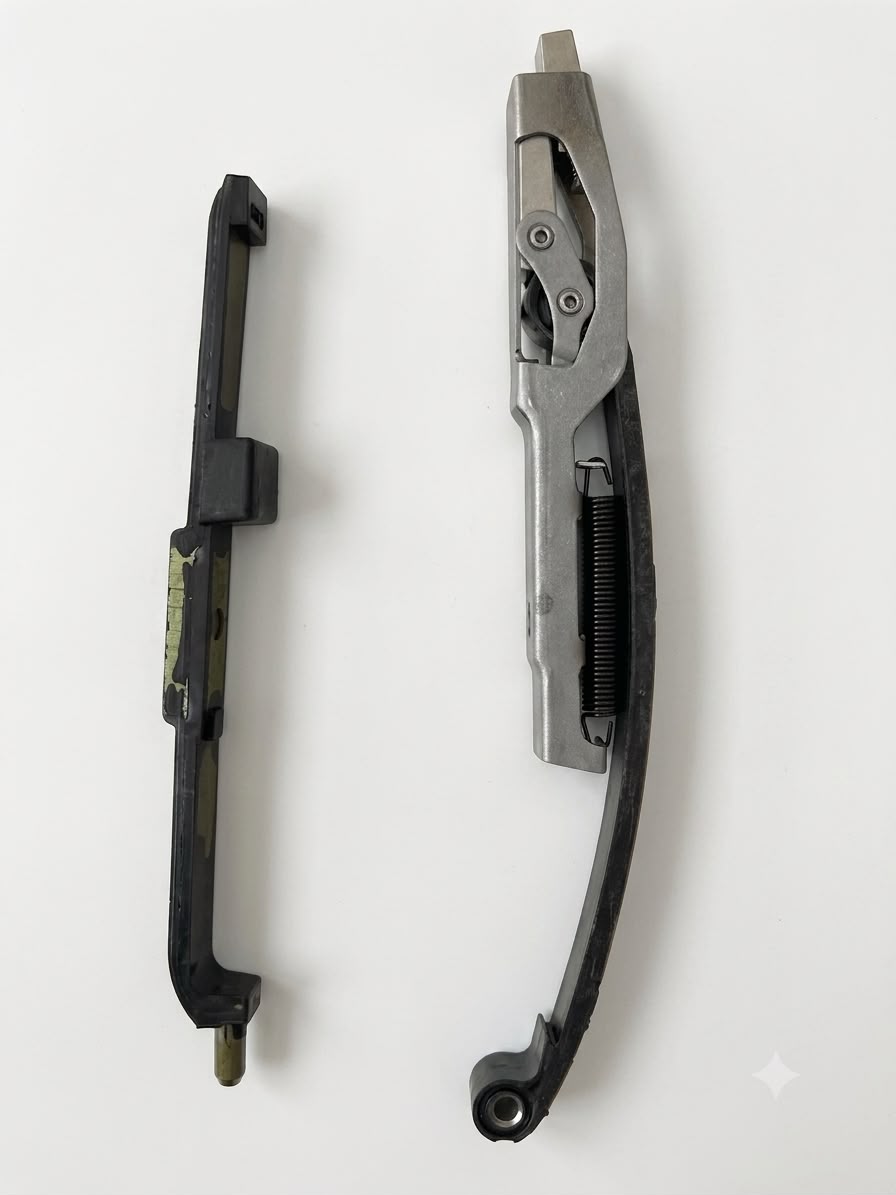

The image ⁠image.png⁠ displays a two-piece automotive or mechanical component assembly, typically used for maintaining precise tension and tracking on a chain or drive system (most commonly an internal combustion engine's timing chain system).

Tensioner Arm Assembly (Right): Features a long, curved black composite or plastic guide shoe designed to interface directly with a moving chain to reduce friction and noise. Attached to it is a heavy-duty stamped metal bracket housing a mechanical tensioning mechanism, complete with an integrated tension extension spring and a pivot/locking linkage assembly at the top.
 Stationary Guide Rail / Lining (Left): A rigid, straight black composite tracking rail designed to guide the opposing side of the chain. It includes integrated mounting points, a small alignment pin at the bottom base, and a central structural reinforcement block.
